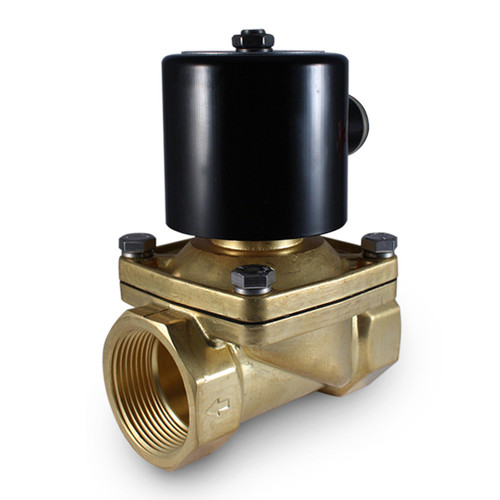

1-1/2" 110V AC Electric Brass Solenoid Valve

SKU:
BZW-40-110VAC
Availability: In Stock
$167.95

Technical Details

SKU BZW-40-110VAC
Position Normally Closed
Port Size 1-1/2" Female NPT
Voltage 110V AC
Body Material Brass
Components Stainless Steel
Seal Material Viton® Diaphragm
Orifice Size 40 mm
Temp Range 15 to 250° F / -10 to 120°C
Pressure Range Water: 0-145 PSI | Air 7-145 PSI
Flow Rate Cv 29 (Appx 220 GPM @ 60 PSI)
Power 40 Watts / 0.50 Amps
Coil Connection Lead Wires
Response Time Fast Acting (Less than one second)
Duty Cycle 100% but not indefinitely
*Suitable Media Water – Air - Fuel - *Etc
Weight 4 lbs 14 oz
Height 6.00"
Length 4.33" port to port
Width 3.35"

3D Models

Product Overview

The BZW-40 is one of the biggest brass valves we currently offer. This valve is a two-way, semi-direct lift valve that operates in a normally closed position. This means that there are two ports in which media flows and the valve will open when the coil is energized to allow media to pass through. Removing the energy from the valve coil will close it and stop the flow. It works across various media such as hot water, air, gas, diesel fuel, Freon, weak acids and weak alkali. The valve features a heavy duty, solid brass body that’s sure to last in the most strenuous projects.

The port size is 1-1/2” inch female NPT threaded. This Solenoid Valve can handle low viscosity fluids below 20 cst. The orifice size is 40mm and theCV value is 29. It requires little to no pressure to function but can withstand pressure up to 145 psi (10 bar) and temperatures as low as 15°F and as high as 250°F. The seal material is Viton® Rubber. This valve works in one direction and will not prevent media from moving backwards in the opposite direction.

This specific valve has a 110 Volt AC coil with a voltage range that is -+ 10. The coil head is fitted with a 5’’ wire lead that can easily be connected with your own choice of terminals. The top of the coil features a label that indicates the valve type and specifications. Its response time is very low; in fact, it acts in less than one second, making it a great choice for all types of applications.

Customers commonly use the BZW-40 Valve for Irrigation, Solar Heating, Beer Brewing, Hydroponics, HVAC, and Plumbing and everywhere else you can think of installing a 1-1/2'' Inch Valve.

This model can be mounted vertically or horizontally, and features a conveniently positioned arrow on the body to indication the direction of flow. This should not be mounted upside down, with the coil underneath the valve.

*Consult a chemical compatibility expert for correct seal and valve body material choice.
