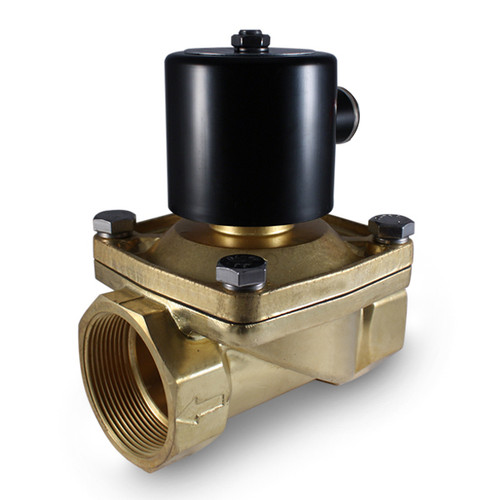

1/2" 24V AC Electric Brass Solenoid Valve

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
Price:
$39.95
SKU:
2W-160-15-24VAC
Availability:
Usually Ships in 24 Hours
Shipping:
Calculated at checkout


Product Description

Featured here is Model 2W-160-15 of our brass valve line. This particular valve is a two-way, semi-direct lift valve with a normally closed operating position. This means that there are two ports in which media flows, the valve will open when the coil is energized and allow media to pass through. Removing the energy from the valve coil will close it and stop the flow. It works across various media such as hot water, air, gas, diesel fuel, Freon, weak acids and weak alkali. The valve features a heavy duty, solid brass body that’s sure to last in the most strenuous projects.

Model# 2W-160-15-24VAC

Specification Overview
Temperature Range 15 to 265° F -10 to 130°C
Pressure Range 0 - 145 PSI (No Minimum Pressure)
Flow Rate Cv 4.8 (Appx 36 GPM @ 60 PSI)
Power Requirments 28 Watts 1.25 Amps
Response Time Fast Acting  (Less than one second)
Duty Cycle 100% but not indefinitely
*Suitable Media Water – Air - Fuel - Etc

 *Consult a chemical compatibility expert for correct seal and valve body material choice.

Valve Details
Function Normally Closed
Port Size 1/2” Female NPT
Valve Body Brass
Seal Material Viton® Diaphragm
Components Stainless Steel
Operation Type Semi-Direct Lift Valve
Coil Connection Lead Wires
Orifice Size 15mm
Weight 1 lb 7 oz
Height 4.00"
Length 2.36" port to port
Width 2.00"



The port size is 1/2” inch female NPT threaded. This Electric Solenoid Valve can handle low viscosity fluids below 20 cst. The orifice size is 15mm and Cv value is 4.8. It can withstand pressure up to 145 psi (10 bar) and temperatures as low as 15°F and as high as 265°F. The seal material is Viton.

This specific valve has a 24 Volt AC coil with a voltage range that is -+ 10. The coil head is fitted with a 5’’ wire lead that can easily be connected with your own choice of terminals. The top of the coil features a label that indicates the valve type and specifications. Its response time is very low; in fact, it acts in less than one second, making it a great choice for all types of applications.

Customers commonly use the 2W-160-15 Valve for Irrigation, Fountains, Water Filtration, Solar Heating, Aquariums, Automotive, Beer Brewing, Hydroponics, HVAC, Plumbing and everywhere else one of our valves can be applied.

This model is mountable in any position and features a conveniently positioned arrow on the body to indication the direction of flow. It comes with a 90 day replacement warranty and is ISO/CE certified, which means one does not have to worry about quality when purchasing it.



Find Similar Products by Category


Write your own product review

Product Reviews

  1. Terrific customer service 5 Star Review

    Posted by on 3rd May 2016

    This item arrived within only a couple of days of my order and at no extra charge for shipping. I am an ignoramus about electronics and did not have the correct power supply to make it work, but Jim talked me through trouble shooting it and was able to help me figure this out. Once I got the right transformer for the job, it worked perfectly for my purpose.


  2. Excellent service! 5 Star Review

    Posted by on 14th Apr 2015

    The valves arrived immediately. Talk about fast service!
    I have yet to install them in service, but the quality looks excellent.
