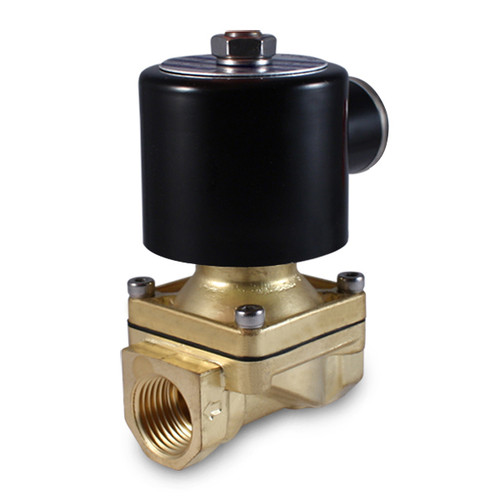

3/8'' 12V DC Electric Brass Solenoid Valve

  • Image 1
  • Image 2
  • Image 3
  • Image 4
Price:
$39.95
SKU:
2W-160-10-12V
Availability:
In Stock
Shipping:
Calculated at checkout


Product Description

Model 2W-160-10 of our brass valve line is a two-way, semi-direct lift valve with a normally closed operating position. This means that there are two ports in which media flows, the valve will open when energized and allow media to pass through. Taking the energy away from the valve will close it and stop the flow. It works across various media such as hot water, air, gas, diesel fuel, Freon, weak acids and weak alkali. The valve features a heavy duty, solid brass body that’s sure to last in the most strenuous projects.

Model# 2W-160-10-12VDC

Specification Overview
Temperature Range 15 to 265° F -10 to 130°C
Pressure Range 0 - 115 PSI (No Minimum Pressure)
Flow Rate Cv 4.8 (Appx 36 GPM @ 60 PSI)
Power Requirments 18 Watts 1.50 Amps
Response Time Fast Acting  (Less than one second)
Duty Cycle 100% but not indefinitely
*Suitable Media Water – Air - Fuel - Diesel - Etc

 *Consult a chemical compatibility expert for correct seal and valve body material choice.

Valve Details
Function Normally Closed
Port Size 3/8” Female NPT
Valve Body Brass
Seal Material Viton® Diaphragm
Components Stainless Steel
Operation Type Semi-Direct Lift Valve
Coil Connection Lead Wires
Orifice Size 15mm
Weight 1 lb 7 oz
Height 4.00"
Length 2.36" port to port
Width 2.00"



The port size is 3/8” inch female NPT threaded. This Electric Solenoid Valve can handle low viscosity fluids below 20 cst. The orifice size is 15mm and Cv value is 4.8. It can withstand pressure up to 115 psi (8 bar) and temperatures as low as 25F and as high as 265 F. The seal material is FKM or Viton Rubber.

This specific valve has a 12 Volt DC coil with a voltage range that is -+ 10. The coil head is fitted with a 5’’ wire lead that can easily be connected with your own choice of terminals. The top of the coil features a label that indicates the valve type and specifications. Its response time is very low; in fact, it acts in less than one second, making it a great choice for all types of applications.

This model is mountable in any position and features a conveniently positioned arrow on the body to indication the direction of flow..



Find Similar Products by Category


Write your own product review

Product Reviews

  1. Good Transaction 5 Star Review

    Posted by on 1st Mar 2017

    Exactly what was described, fast and free shipping. Fair value, medium priced, medium quality. This valve has only been installed for two weeks. Durability has yet to be determined.


  2. excellent product 5 Star Review

    Posted by on 17th Feb 2017

    excellent product, installed and works as should


  3. Appears 5 Star 5 Star Review

    Posted by on 25th Oct 2014

    I purchased this valve with the 2 day USPS shipping. It arrived on the second day. Remarkable for the Postal Service. The valve has a yellow brass body, appears to have stainless steel fasteners and metal electro magnetic controller. Connecting wires are 6" long and tinned. Electrical specifications/mechanical clearly are shown on top of the magnit. There is a flow direction molded into the valve body. ISO 9001-2000. Country of manufacturing not shown. First rate. Workmanship. I do recommend this valve.


  4. Appears 5 Star 5 Star Review

    Posted by on 25th Oct 2014

    I purchased this valve with the 2 day USPS shipping. It arrived on the second day. Remarkable for the Postal Service. The valve has a yellow brass body, appears to have stainless steel fasteners and plastic electro magnetic controller. Connecting wires are 6" long and tinned. Electrical specifications/mechanical clearly are shown on top of the magnit. There is a flow direction molded into the valve body. ISO 9001-2000. Country of manufacturing not shown. First rate. Workmanship. I do recommend this valve.


  5. works great 5 Star Review

    Posted by on 22nd Sep 2014

    Using it on my trucks aux fuel tank works great


  6. Operates in hot environment 5 Star Review

    Posted by on 2nd Sep 2014

    I used this valve to control propane gas to a trailer oven. With some thermal isolation it operated flawlessly in an ambient temp at or near its 80C maximum. I'm very pleased with the valve's quality and operating characteristics.


  7. excellent product 5 Star Review

    Posted by on 11th Jun 2014

    The valve works excellent, and was shipped fast. Very happy with Electricsolenoidvalves.com
