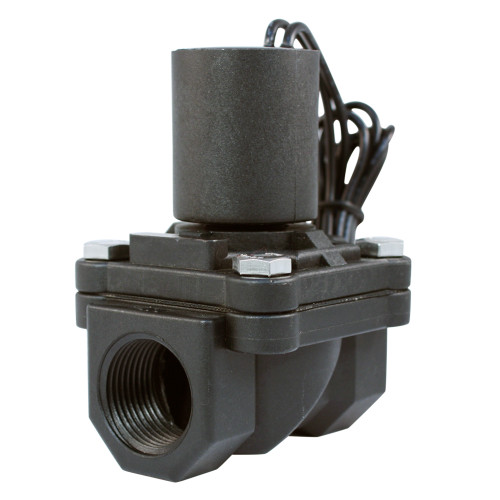

3/4" FNPT 24V AC Electric Plastic Solenoid Valve

SKU: N5C-EB1

Availability: In Stock

No reviews yet
$32.95

Quick Links

Technical Details

SKU N5C-EB1
Position Normally Closed
Port Size 3/4" Female NPT
Voltage 24V AC
Body Material Noryl GTX-830
Components Stainless Steel
Seal Material EPDM Diaphragm
Orifice Size 3/4"
Temp Range 15 to 175° F
Pressure Range 5 - 115 PSI (Minimum Required)
Flow Rate Cv 6.7 (Appx 51 GPM @ 60 PSI)
Power 6 Watts
Coil Connection 18" Lead Wires
Response Time Fast Acting (Less than one second)
Duty Cycle 100% but not indefinitely
*Suitable Media Fluid - Potable Water – Air - *Etc
Enclosure NEMA 4
Certifications None
Weight 9.4 oz
Height 3.80"
Length 2.75" port to port
Width 2.35"

Downloads

Product Overview

The N5C-EB1 is a ¾” female NPT port solenoid valve that is compact and lightweight. This solenoid valve is molded from Noryl GTX830, stainless steel components and an EPDM seal making it ideal for potable water applications.

This type of piloted diaphragm valve is a normally closed with a uni-directional flow. The valve will only open while powered and remain in the closed position when unpowered.  It has a fast response time and will actuate in under a second.

The coil is low power requiring less than 6 watts to activate. The coil itself is epoxy encapsulated and water resistant to be used outdoors or in spray down locations. The coil can easily be contacted via its 18” lead wires.

This solenoid features an EPDM seal making it compatible with a wide range of media types. As with all diaphragm solenoid valves a pre-filter is recommended to keep the orifice free from debris and clogging.
