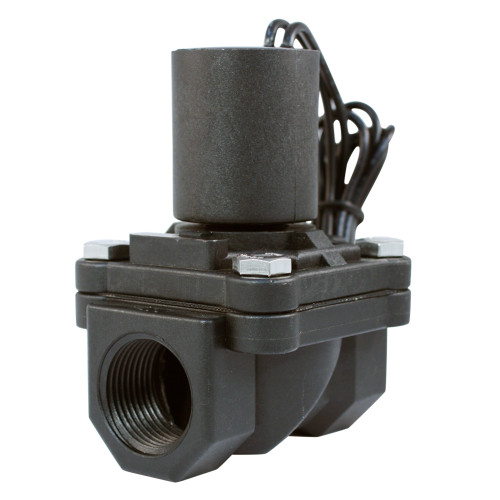

3/4" FNPT 24V DC Electric Plastic Solenoid Valve

SKU: N5C-ED1

Availability: In Stock

No reviews yet
$32.95

Quick Links

Technical Details

SKU N5C-ED1
Position Normally Closed
Port Size 3/4" Female NPT
Voltage 24V DC
Body Material Noryl GTX-830
Components Stainless Steel
Seal Material EPDM Diaphragm
Orifice Size 3/4"
Temp Range 15 to 175° F
Pressure Range 5 - 115 PSI (Minimum Required)
Flow Rate Cv 6.7 (Appx 51 GPM @ 60 PSI)
Power 6 Watts
Coil Connection 18" Lead Wires
Response Time Fast Acting (Less than one second)
Duty Cycle 100% but not indefinitely
*Suitable Media Fluid - Potable Water – Air - *Etc
Enclosure NEMA 4
Certifications None
Weight 9.4 oz
Height 3.80"
Length 2.75" port to port
Width 2.35"

Downloads

Product Overview

The N5C-ED1 electric solenoid valve has a 3/4” Female NPT connection and constructed of Noryl GTX-830 making it an ideal choice in potable water applications. This model includes a low power 24 volt DC encapsulated coil with 18” lead wires. The valve is uni-directional consisting of an inlet and outlet port.

This is a Normally Closed valve and will not open until 24 Volts DC power is applied. The valve will stay open as long as it is provided power and close when power is removed. The valve is uni-directional meaning flow can only enter the inlet port and the exhaust port will not hold back pressure.

The valves encapsulated coil is NEMA 4 equivalent and will work outdoors or in spray down environments, but should never be submerged.

The valve body is made from Noryl GTX830, the sealing materials are EPDM with Stainless steel components making it ideally suited for anyone seeking NSF61 certification.

This valve does require a minimum pressure to open which is 5 psi for liquids.
