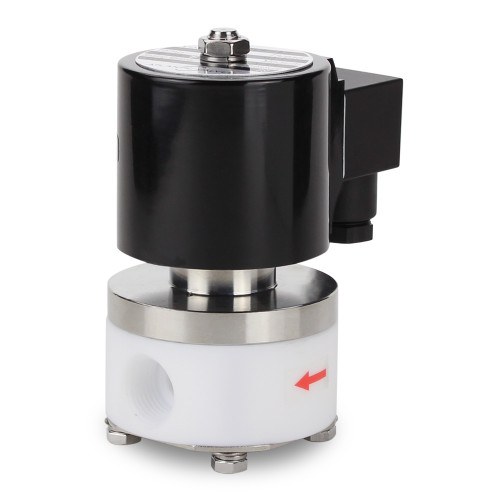

1/2" PTFE Anti-Corrosive Solenoid Valve
Availability: In Stock
Technical Details
SKU
PCF-15
Position
Normally Closed
Port Size
1/2" NPT Female
Available Voltage
Select Above
Body Material
PTFE
Components
PTFE
Seal Material
Viton®
Orifice Size
11 mm
Temp Range
15°F - 175°F
Pressure Range
0-29 PSI
Flow Rate
Cv 3.3 (Approx 12GPM @ 15 PSI)
Power
110V AC: 7 VA, 220V AC: 9 VA, 24V DC: 8W
Coil Connection
DIN 43650A
Coil Class
Class H (356° F)
Response Time
Fast Acting (Less than one second)
Duty Cycle
100% ED (Continuous)
*Suitable Media
Corrosive liquids and gases
Weight
3.53 lbs
Height
4.92"
Length
Ø 2.72" body diameter, 4.00" total
CAD Files
Available Upon Request
Product Overview
The 1/2" PTFE Solenoid Valve PCF-15 is designed for corrosive fluid applications that require reliable electric actuation and a non-metallic wetted path. It is commonly used in chemical handling systems where material compatibility is essential.
This valve features a solid PTFE body that resists strong acids, alkalis, and aggressive process fluids. It performs well in water treatment systems, plating operations, laboratory environments, and chemical processing equipment.
The PCF-15 is a direct-acting, normally closed 1/2" PTFE solenoid valve. It does not require a minimum pressure differential to operate. This makes it suitable for low-pressure systems, gravity-fed installations, and lightly pressurized process loops.
An energy-efficient solenoid coil helps reduce heat generation and electrical load during continuous use. The DIN electrical connection supports secure wiring and protects the coil in damp or chemically exposed installations.
With a compact footprint and moderate flow capacity, this 1/2" PTFE solenoid valve fits chemical dosing lines, skid-mounted systems, sampling circuits, and laboratory process connections where durability matters more than high flow volume.
Always confirm chemical compatibility for PTFE and Viton with your specific media before selection.
