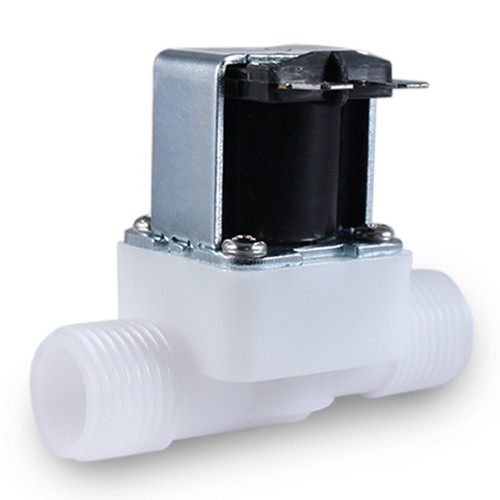

1/4'' 120V AC Electric Plastic Solenoid Valve

SKU: RSC-2-120V

Availability: In Stock

$16.99

Quick Links

Technical Details

SKU RSC-2-120V
Position Normally Closed
Port Size 1/4" Female NPT
Voltage 110V AC
Body Material
Components Stainless Steel
Seal Material Viton® Diaphragm
Orifice Size
Temp Range
Pressure Range
Flow Rate
Power
Coil Connection Lead Wires
Response Time Fast Acting (Less than one second)
Duty Cycle 100% but not indefinitely
*Suitable Media Water – Air - *Etc
Weight
Height
Length port to port
Width

Product Overview

  • Plastic Body with 120V AC Coil
  • 2-way normally closed operation
  • Mountable in any position
  • 90 Day Replacement Warranty
  • CE/ISO Certificated
  • 1/4'' Female NPT Thread

Model# RSC-2


Specifications:



Port Size

   1/4’’

Voltage

   120V AC Coil  (6.5 watts)

Build Material

   Plastic  (Polypropylene)

Working Medium

   Water – Air

Operation Mode

   Normally Closed

Fluid Viscosity

   Low Viscosity Fluids (below 20 cst)

Pressure Limits

   0 - 115 psi   ( 8 bar )

Temperature

   25 to 195° F      |    -5 to 90°C

Seal Material

   NBR (Buna N) Seal

Response Time

   Fast Acting  (Less than one second)



Model RSC-2 of our plastic valve line is a two-way, direct acting valve with a normally closed operating position. This means that there are two ports in which media flows, the valve will open when energized and allow media to pass through. Taking the energy away from the valve will close it and stop the flow. It works across various media such as water, air, and other low viscosity fluids.

The port size is 1/4” inch female NPT threaded. The orifice size is 2.5mm and CV value is 0.21. It can withstand pressure up to 115 psi (8 bar) and temperatures as low as -5 C and as high as 90 C. The seal material is NBR (Buna-N) or Nitrile Butadiene Rubber.

This specific plastic valve has a 120 Volt AC coil with a voltage range that is -+ 10. The coil head is fitted with a 10’’ wire lead that can easily be connected with your own choice of terminals. The top of the coil features a label that indicates the valve type and specifications. Its response time is very low; in fact, it acts in less than one second, making it a great choice for all types of applications.

Common uses include but not limited to;

  • Water Filters
  • Ice Makers
  • Drinking Fountains
  • Washing Machines
  • Dishwashers
  • Dental Tools
  • Fish Tanks
  • Beer Brewing
  • Hydroponics
  • Etc.

This model is mountable in any position and features a conveniently positioned arrow on the body to indication the direction of flow. The valve body is threaded at the base and can quickly be mounted with 4mm machine screws. It comes with a 90 day replacement warranty and is ISO/CE certified, which means one does not have to worry about quality when purchasing it.


Reviews Write a Review

Great Valve

Posted by Mike on 23rd Mar 2017

The valve was purchased several months ago and was only recently installed. So far, it's working fine for a large, decorative yard fountain water level refill switch.

The pump is doing exactly what I was trying to accomplish.

Posted by JohnD on 11th Jun 2014

I put this little pump into a drip irrigation system to be activated by a simple electric timer so that my plants received an hour of water in the middle of the night. It was very easy to plumb the valve into the system and to add a plug to hook it up with the timer. The whole system has been working well now for 4 days. Wonderful!

Perfect

Posted by Jim on 7th Mar 2014

Great product. Exactly what I was looking for.

Pool Ozone Air Intake

Posted by Jerry on 14th Sep 2013

Used valve for ozone air intake at pump filter basket (i.e. suction side). Works excellent. Wired with ozone voltage so only activates when ozone is on.

Easy to order...hard to find

Posted by Paul on 1st Aug 2013

I couldnt find this valve anywhere locally but luckily I came across your site. I installed it and its been working out great in my drip system.
