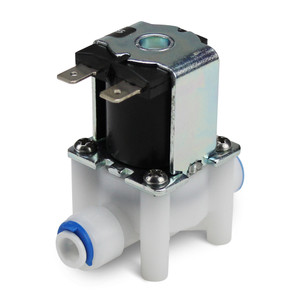

1/4'' 120V AC Push Connect Plastic Solenoid Valve

Availability: In Stock

Technical Details

Position Normally Closed
Port Size 1/4" Quick Connect
Voltage 110V AC
Body Material Plastic (Polypropylene)
Components Stainless Steel
Seal Material EPDM Diaphragm
Orifice Size 2 mm
Temp Range 25 to 175° F / -5 to 80°C
PSI Range 3 - 115 PSI (Minimum Required)
Flow Rate Cv 0.2 (Appx 1.5 GPM @ 60 PSI)
Power 5 Watts
Coil Connection Terminal
Response Time Fast Acting (Less than one second)
Duty Cycle 100% but not indefinitely
*Suitable Media Water – Air - *Etc
Weight 4 oz
Height 2.30"
Length 2.50" port to port
Width 1.34"

3D Models

Product Overview

Model RSC-A2 of our plastic valve line is a two-way, direct acting valve with a normally closed operating position. This means that there are two ports in which media flows and the valve will open when energized to allow media to pass through. Taking the energy away from the valve will close it and stop the flow. It works across various media such as water, air and other low viscosity fluids.

The port size is 1/4” Push In Connect used with 1/4" OD Tubing. The orifice size is 2mm. It can withstand pressure up to 115 psi (8 bar) and temperatures as low as 25 F and as high as 175 F. The seal material is EPDM Rubber.

This specific plastic valve has a 120 Volt AC coil with a voltage range that is -+ 10. Its response time is very low; in fact, it acts in less than one second, making it a great choice for all types of applications.

Common uses include but not limited to;

  • Water Filters
  • Ice Makers
  • Drinking Fountains
  • Washing Machines
  • Dishwashers
  • Dental Tools
  • Fish Tanks
  • Beer Brewing
  • Hydroponics
  • Etc.

This model is mountable in any position and features a conveniently positioned arrow on the body to indicate the direction of flow. The valve body is threaded at the base and can quickly be mounted with 4mm machine screws.
