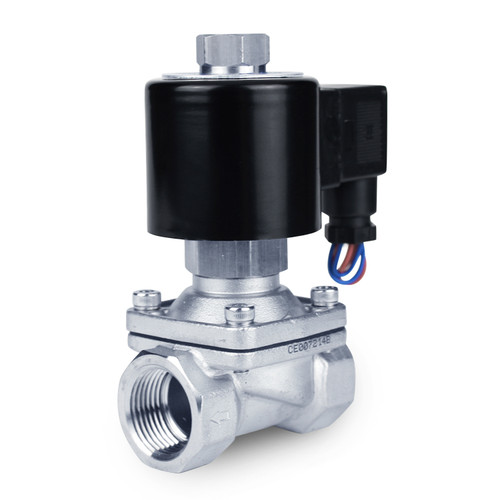

3/4" 12V DC Stainless Steel Solenoid Valve N/O

SKU: NOS34-12VDC

Availability: Out of Stock

No reviews yet
$84.95

Currently Out of Stock

Quick Links

Technical Details

SKU NOS34-12VDC
Position
Port Size
Voltage
Body Material
Components
Seal Material Viton® Diaphragm
Orifice Size
Temp Range
Pressure Range
Flow Rate
Power
Coil Connection
Response Time Fast Acting (Less than one second)
Duty Cycle 100% but not indefinitely
*Suitable Media Water – Air - Fuel - *Etc
Weight
Height
Length port to port
Width

Product Overview

The NOS34-12VDC stainless steel, normally open solenoid valve configured with ¾” NPT threaded ports. This valves un-powered position is open which allows media to pass until it is provided power, at which time it will remain closed until power is removed. The valve has a solid stainless steel body and Viton seal. This unit is compatible with a variety of media such as air, water, gas, diesel fuel, acids and alkali.

Model# NOS34-12VDC

Specification Overview
Temperature Range 15 to 265° F -10 to 130°C
Pressure Range 0 - 90 PSI (No Minimum Pressure)
Flow Rate Cv 7.6 (Appx 58 GPM @ 60 PSI)
Power Requirments 28 Watts 1.50 Amps
Response Time Fast Acting  (Less than one second)
Duty Cycle 100% but not indefinitely
*Suitable Media Water – Air - Fuel - *Etc

 *Consult a chemical compatibility expert for correct seal and valve body material choice.

Valve Details
Function Normally Open
Port Size 3/4” Female NPT
Valve Body Stainless Steel
Seal Material Viton® Diaphragm
Components Stainless Steel
Operation Type Semi-Direct Lift Valve
Coil Connection DIN Connection
Orifice Size 20mm
Weight 1 lb 13 oz
Height 4.70"
Length 2.65" port to port
Width 2.00"
