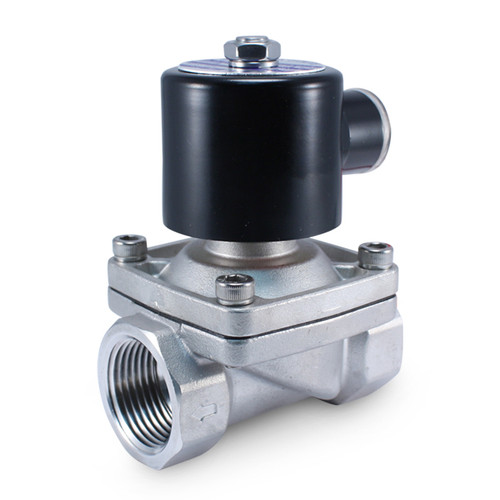

1" 12V DC Stainless Steel Solenoid Valve N/O

Availability: In Stock

Technical Details

Position Normally Open
Port Size 1" Female NPT
Voltage 12V DC
Body Material Stainless Steel
Components Stainless Steel
Seal Material Viton® Diaphragm
Orifice Size 25 mm
Temp Range 15 to 250° F / -10 to 120°C
Pressure Range Water: 0-90 PSI | Air 7-90 PSI
Flow Rate Cv 12 (Appx 92 GPM @ 60 PSI)
Power 18 Watts / 1.50 Amps
Coil Connection DIN 43650B
Response Time Fast Acting (Less than one second)
Duty Cycle 100% but not indefinitely
*Suitable Media Water – Air - Fuel - *Etc
Weight 2 lbs 7 oz
Height 5.00"
Length 3.20" port to port
Width 2.60"

3D Models

Product Overview

The SZW-25K-12VDC is a 2-way solenoid valve that comes standard in the Normally Open position. This 1” Stainless Steel valve is uni-directional and controls flow in a single direction. As a normally open valves functions it will stay open until power is applied. The valves Viton seal and SS 304 body make it suitable for many applications and media types.

This valve has a working pressure from 0-90 PSI making it suitable for gravity fed liquids. It can handle media temperatures as low as 15°F and as high as 250°F.

This is a complete valve which includes a 12V DC coil. The coil has pigtail style lead wires that can easily be connected to your power source. This valve will require 18 watts of 12 Volt DC power to properly operate. The coil is encased but should not be installed directly in the elements.

*Consult a chemical compatibility expert for correct seal and valve body material choice.

Warranty guarantees our valves to be free from defects in workmanship and materials under normal use for One year from the date of purchase.
