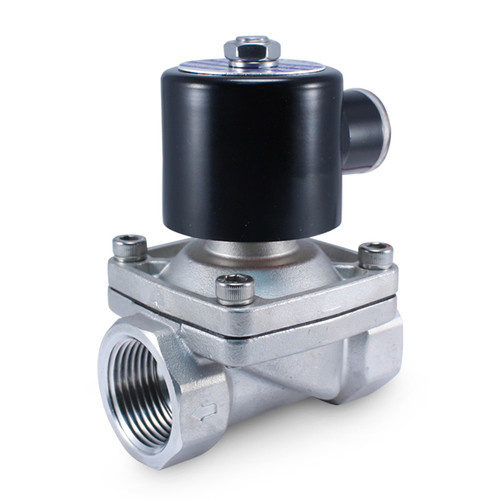

1" 24V DC Stainless Steel Solenoid Valve N/O

Availability: In Stock

Technical Details

Position Normally Open
Port Size 1" Female NPT
Voltage 24V DC
Body Material Stainless Steel
Components Stainless Steel
Seal Material Viton® Diaphragm
Orifice Size 25 mm
Temp Range 15 to 250° F / -10 to 120°C
Pressure Range Water: 0-90 PSI | Air 7-90 PSI
Flow Rate Cv 12 (Appx 92 GPM @ 60 PSI)
Power 28 Watts / 1.25 Amps
Coil Connection DIN 43650B
Response Time Fast Acting (Less than one second)
Duty Cycle 100% but not indefinitely
*Suitable Media Water – Air - Fuel - *Etc
Weight 2 lbs 7 oz
Height 5.00"
Length 3.20" port to port
Width 2.60"

3D Models

Product Overview

Are you in search of a valve with a 1” NPT port, in the normally open position with a stainless steel body powered by 24 Volts DC? Than this might be the solenoid valve for you. The SZW-25K-24VDC stays in the open position allowing media to pass until provided with power from a 24V DC supply. This valve is suitable for many different types of media including but not limited to air, water, gas, glycol, weak acids and alkali.

This normally open valve has a working pressure range of 0-90 PSI. It is appropriate for media temperatures ranging from 15°F and up to 250°F or -10 to 120°C.

The valves 24 Volt DC coil uses 28 Watts or 1.50 Amps to hold position. The valve has a DIN connector to easily attach it your supply.  Preferable mounting position is with the coil up.

*Consult a chemical compatibility expert for correct seal and valve body material choice.

Warranty guarantees our valves to be free from defects in workmanship and materials under normal use for One year from the date of purchase.
