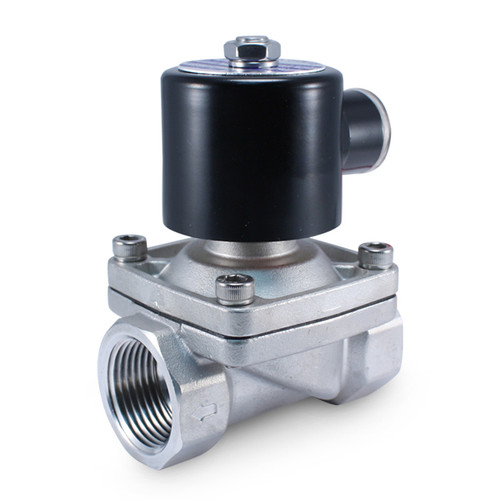

1" 24V AC Stainless Steel Solenoid Valve N/O

Availability: In Stock

Technical Details

Position Normally Open
Port Size 1" Female NPT
Voltage 24V AC
Body Material Stainless Steel
Components Stainless Steel
Seal Material Viton® Diaphragm
Orifice Size 25 mm
Temp Range 15 to 250° F / -10 to 120°C
Pressure Range Water: 0-90 PSI | Air: 7-90 PSI
Flow Rate Cv 12 (Appx 92 GPM @ 60 PSI)
Power 28 Watts / 1.25 Amps
Coil Connection DIN 43650B
Response Time Fast Acting (Less than one second)
Duty Cycle 100% but not indefinitely
*Suitable Media Water – Air - Fuel - *Etc
Weight 2 lbs 7 oz
Height 5.00"
Length 3.20" port to port
Width 2.60"

3D Models

Product Overview

The SZW-25K-24VAC is a Normally Open valve in our Stainless Steel line up. The port size is 1” NPT with an inlet and outlet port. The valve is unidirectional controlling the flow of media in a single direction. There is a directional arrow molded on the valve body to assist in the correct installation.

This valve has a 304 Stainless Body, a Viton seal and 316 stainless internal components. This body seal combination makes the valve suitable for many different media types. The valve can handle media temperatures as low as 15°F and up to 250°F. Its rated pressure is from 0 up to 90 PSI max. This valve requires no differential pressures when working with fluids making it ideal for gravity fed applications.

The coil has a pre-wired DIN connection for easy installation. This valve will require 28 Watts / 1.25 Amps from a 24 volt AC power source.

*Consult a chemical compatibility expert for correct seal and valve body material choice.

Warranty guarantees our valves to be free from defects in workmanship and materials under normal use for One year from the date of purchase.
