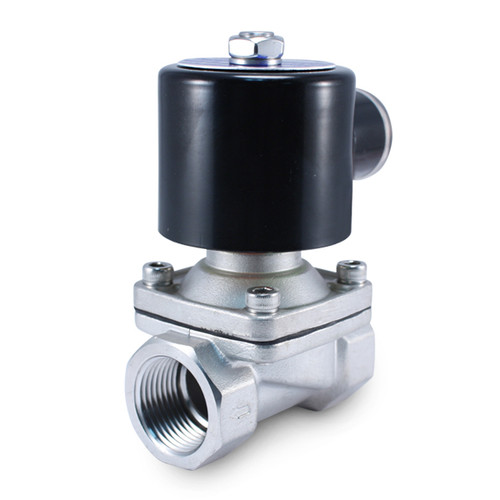

3/4" 24V AC Stainless Steel Solenoid Valve N/O

Availability: In Stock

Technical Details

Position Normally Open
Port Size 3/4" Female NPT
Voltage 24V AC
Body Material Stainless Steel
Components Stainless Steel
Seal Material Viton® Diaphragm
Orifice Size 20 mm
Temp Range 15 to 250° F / -10 to 120°C
Pressure Range Water: 0-90 PSI | Air 7-90 PSI
Flow Rate Cv 7.6 (Appx 58 GPM @ 60 PSI)
Power 28 Watts / 1.25 Amps
Coil Connection DIN 43650B
Response Time Fast Acting (Less than one second)
Duty Cycle 100% but not indefinitely
*Suitable Media Water – Air - Fuel - *Etc
Weight 1 lb 13 oz
Height 4.70"
Length 2.65" port to port
Width 2.00"

3D Models

Product Overview

The SZW-20K-24VAC is a fast acting solenoid valve configured in a normally open position with ¾” female NPT ports. A normally open valve remains open allowing media to flow and closes when power is supplied. This is a diaphragm type solenoid valve that uses a Viton seal. The Stainless Steel construction and Viton seal make this valve suitable for a wide range of projects. This valve is suitable for potable water and food grade applications. The valve will also withstand temperatures as high as 250°F and aggressive fluids such as fuels and weak acids.

*Consult a chemical compatibility expert for correct seal and valve body material choice.

Warranty guarantees our valves to be free from defects in workmanship and materials under normal use for One year from the date of purchase.
