1-1/2" 24V AC Stainless Steel Solenoid Valve N/O

SKU:
SZW-40K-24VAC
Availability: In Stock
$296.49

Technical Details

SKU SZW-40K-24VAC
Position Normally Open
Port Size 1-1/2" Female NPT
Voltage 24V AC
Body Material Stainless Steel
Components Stainless Steel
Seal Material Viton® Diaphragm
Orifice Size 40 mm
Temp Range 5 to 250° F
Pressure Range 0 to 90 psi
Flow Rate Cv 29 (Appx 220 GPM @ 60 psi)
Power 23 VA | 1.00 Amps
Coil Connection DIN 43650A
Protection Class IP54
Response Time Fast Acting (Less than one second)
Duty Cycle 100% Duty at Rated Ambient Temperature
Suitable Media Water | Air | Fuel
Weight 5 lb 1 oz
Height 6.60"
Length 4.50" port to port
Width 3.35"
CAD Files https://esvalves-embedded.partcommunity.com?info=esvalves%2Fstainless20steel%2Fnormally20open%2F1-12f22220valves20n2fo.prj&varset=%7BSKU=SZW-40K-24VAC%7D&hidePortlets=navigation&hidePortlets=searchHeader

Product Overview

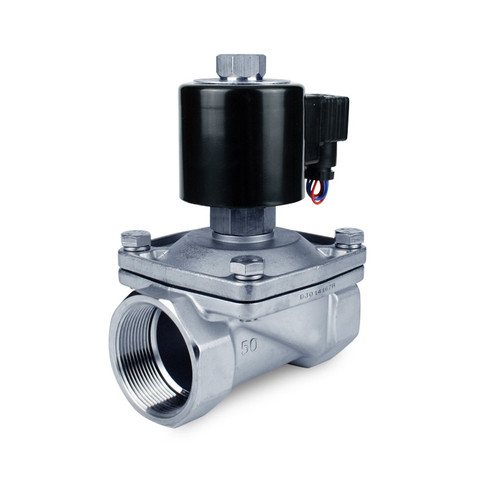

Featured here is a 1-1/2" Normally Open 24 Volt AC Solenoid Valve. This particular valve is a two-way, semi-direct diaphragm valve with a normally open operating position. This means that the valve remains in the open position, allowing flow; once power is supplied, the valve will quickly switch into the closed position, preventing flow. The valve is perfect for an automation project requiring the control of media.

This large port valve has a 40 mm orifice, which allows a substantial amount of flow over similar valves. Its suitable pressure range is from 0 to 90 psi, making it great when a gravity flow valve is needed in a low- or no-pressure system. This valve is recommended to work within an ambient temperature range between 5 and 250°F.

The solenoid valve body is molded from 304 stainless steel, which is lead-free and food-grade. The diaphragm used to seal the valve is composed of FKM or Viton. The internal components are stainless steel.

Common Applications

  • This valve's combination of body and internal components makes it suitable for a wide range of chemicals and gases, including but not limited to air, water, gasoline, diesel fuel, weak acids, glycol, as well as many more.

Installation

  • The valve is uni-directional and will only control flow in a single direction.
  • Installation with the coil facing in the up position is preferred.
  • The solenoid coil is included and can be wired via the valve's 3-prong DIN connector.
  • The DIN connector is pre-wired and has no polarity, so installation can be done quickly.
  • The valve will require 1.75 amps from a 24 Volt AC power source.
  • The coil is shielded and splash-resistant.
  • It should never be installed in a wet location.

 *Consult a chemical compatibility expert for correct seal and valve body material choice.

Warranty

Electricsolenoidvalves.com guarantees our valves to be free from defects in workmanship and materials under normal use for One year from the date of purchase.
