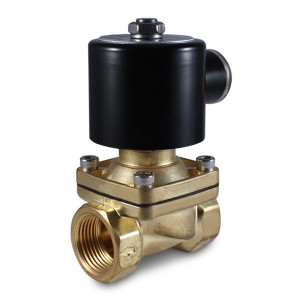

2" 24V DC Electric Brass Solenoid Valve

SKU:
BZW-50-24VDC
Availability: In Stock
$219.95

Technical Details

SKU BZW-50-24VDC
Position Normally Closed
Port Size 2" Female NPT
Voltage 24V DC
Body Material Brass
Components Stainless Steel
Seal Material Viton® Diaphragm
Orifice Size 50 mm
Temp Range 15 to 250° F / -10 to 120°C
Pressure Range Water: 0-90 PSI | Air 7-90 PSI
Flow Rate Cv 45 (Appx 345 GPM @ 60 PSI)
Power 40 Watts / 1.75 Amps
Coil Connection Lead Wires
Response Time Fast Acting (Less than one second)
Duty Cycle 100% but not indefinitely
*Suitable Media Water – Air - Fuel - *Etc
Weight 7 lbs
Height 6.50
Length 5.30" port to port
Width 4.25"

3D Models

Product Overview

The BZW-50 is currently the biggest brass valves we offer. This Big Boy is a two-way, semi-direct lift valve that operates in a normally closed position. It works across various media such as hot water, air, Freon, weak acids and weak alkali. The valve features a heavy duty, solid brass body that’s sure to last in the most strenuous projects.

The port size is 2” inch female NPT threaded. The orifice size is 50mm and Cv value is 48. This Solenoid Valve can handle low viscosity fluids below 20 cst. It requires little to no pressure to function but can withstand pressure up to 90 psi (7 bar) and temperatures as low as 15°F and as high as 250°F. The seal material is Viton® Rubber. This valve works in one direction and will not prevent media from moving backwards in the opposite direction.

This specific valve has a 24 Volt DC coil with a voltage range that is -+ 10. The coil head is fitted with a 5’’ wire lead that can easily be connected with your own choice of terminals. The top of the coil features a label that indicates the valve type and specifications. Its response time is very low; in fact, it acts in less than one second, making it a great choice for all types of applications.

Customers commonly use the BZW-50 Valve for Irrigation, Solar Heating, Hydroponics, HVAC, and Plumbing and everywhere else you can think of installing a big 2'' Inch Valve.

Conveniently positioned arrow on the body to indication the direction of flow.

*Consult a chemical compatibility expert for correct seal and valve body material choice.

Warranty

Electricsolenoidvalves.com guarantees our valves to be free from defects in workmanship and materials under normal use for One year from the date of purchase.

For complete terms of this warranty see our Warranty Terms & Conditions
