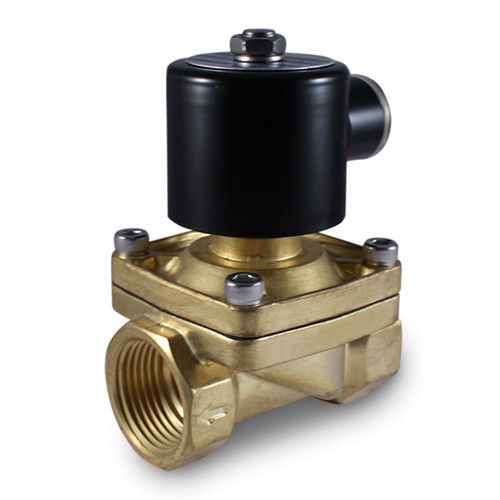

1" 110V AC Electric Brass Solenoid Valve

SKU:
BZW-25-110VAC
Availability: In Stock
$69.95

Technical Details

SKU BZW-25-110VAC
Position Normally Closed
Port Size 1" Female NPT
Voltage 110V AC
Body Material Brass
Components Stainless Steel
Seal Material Viton® Diaphragm
Orifice Size 25 mm
Temp Range 15 to 250° F / -10 to 120°C
Pressure Range Water: 0-145 PSI | Air: 7-145 PSI
Flow Rate Cv 12 (Appx 92 GPM @ 60 PSI)
Power 28 Watts / 0.50 Amps
Coil Connection Lead Wires
Response Time Fast Acting (Less than one second)
Duty Cycle 100% but not indefinitely
*Suitable Media Water – Air - Fuel - *Etc
Weight 2 lbs 5 oz
Height 4.50"
Length 3.25" port to port
Width 2.60"

3D Models

Product Overview

Featured here is Model BZW-25 of our brass valve line. This particular valve is a two-way, semi-direct acting valve with a normally closed operating position. This means that there are two ports in which media flows and the valve will open when the coil is energized to allow media to pass through. Removing the energy from the valve coil will close it and stop the flow. It works across various media such as hot water, air, gas, diesel fuel, Freon, weak acids and weak alkali. The valve features a heavy duty, solid brass body that’s sure to last in the most strenuous projects.

The port size is 1” inch female NPT threaded. This Electric Solenoid Valve can handle low viscosity fluids below 20 cst. The orifice size is 25mm and the Cv value is 12. It can withstand pressure up to 145 psi (10 bar) and temperatures as low as 15°F and as high as 250°F. The seal material is FKM or Viton Rubber. This valve works in one direction and will not prevent media from moving backwards in the opposite direction.

This specific valve has a 110 Volt AC coil with a voltage range that is -+ 10. The coil head is fitted with a DIM connector that can easily be connected with your own choice of terminals. The coils are not polarized, which mean that positive/negative does not matter when wiring them. The top of the coil features a label that indicates the valve type and specifications. Its response time is very low; in fact, it acts in less than one second, making it a great choice for all types of applications.

Customers commonly use the BZW-25 Valve for Irrigation, Fountains, Water Filtration, Solar Heating, Aquariums, Automotive, Beer Brewing, Hydroponics, HVAC, and Plumbing and everywhere else one of our valves can be applied.

This model is mountable in any position and features a conveniently positioned arrow on the body to indication the direction of flow.

*Consult a chemical compatibility expert for correct seal and valve body material choice.
