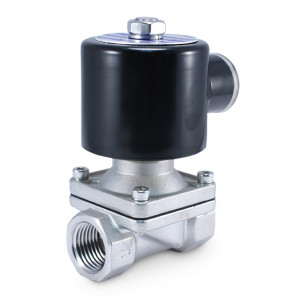

1/4" 110V AC Stainless Electric Solenoid Valve


Availability: In Stock


Quick Links

Technical Details

Position Normally Closed
Port Size 1/4" Female NPT
Voltage 110V AC
Body Material Stainless Steel
Components Stainless Steel
Seal Material Viton® Diaphragm
Orifice Size 3 mm
Temp Range 15 to 250° F / -10 to 120°C
Pressure Range Air: 145 psi | Water: 115 psi | Light Oil: 70
Flow Rate Cv 0.4 (Appx 3 GPM @ 60 PSI)
Power 10 Watts / 0.50 Amps
Coil Connection Lead Wires
Response Time Fast Acting (Less than one second)
Duty Cycle 100% but not indefinitely
*Suitable Media Water – Air - Fuel - *Etc
Weight 10 oz
Height 2.62"
Length 1.60" port to port
Width 1.20"

Product Overview

The SS-3J-110VAC is a direct acting 110 / 120 Volt AC, 2 way, 1/4" Stainless Steel solenoid valve that can be used for liquid, water, gas and air in a variety of different applications. This valve uses a Viton seal that is compatible with many liquids such as hot water up to 250°F, weak acids and diesel fuel. This 1/4" valve is Normally Closed which means the valve will only open when power is applied and close when power is removed. This valve will operate with typical 120 Volt residential power. This compact valve features a solid stainless steel body with a female NPT threaded port.

The SS-3J-110VAC has a 110 / 120 Volt AC coil with a voltage range that is -+ 10. The coil head is fitted with a Wire Lead connection that can easily be connected with your own choice of terminals. Its response time is very low; in fact, it acts in less than one second, making it a great choice for all types of applications.

Customers commonly use the SS-3J-110VAC Valve for Misting Systems, Fountains, Water Filtration, Solar Heating, Aquariums, Automotive, Beer Brewing, Hydroponics, HVAC, Plumbing and everywhere else one of our valves can be applied.

This model is mountable in any position and features a conveniently positioned arrow on the body to indicate the direction of flow.

Connection – No Polarity, + and – can be interchanged.

Coil up is the preffered mounting position but can be mounted in any position.

A pre-filter is always recommended to keep the diaphragm free from debris and the valve functioning properly.

*Consult a chemical compatibility expert for correct seal and valve body material choice.

*The Orifice size is 3mm and Cv value is 0.4. This valve is not recommended for gravity fed systems because of the small orifice size.


Electricsolenoidvalves.com guarantees our valves to be free from defects in workmanship and materials under normal use for One year from the date of purchase.

For complete terms of this warranty see our Warranty Terms & Conditions
