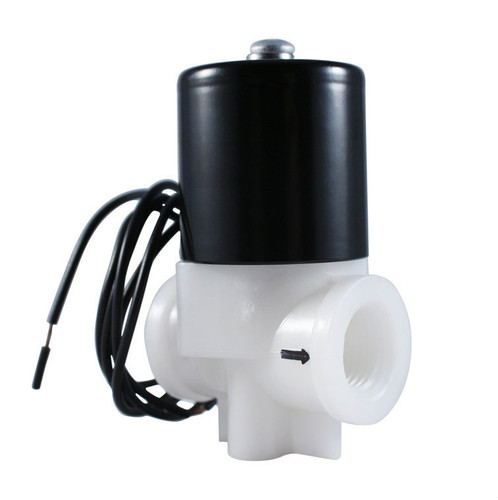

1/4'' 12V DC Electric Plastic Solenoid Valve


Availability: In Stock


Quick Links

Technical Details

Position Normally Closed
Port Size 1/4" Female NPT
Voltage 12V DC
Body Material PP (Polypropylene)
Components Stainless Steel
Seal Material EPDM Diaphragm
Orifice Size 2.5 mm
Temp Range 25 to 212° F / -0 to 100°C
Pressure Range 0 - 115 PSI (No Minimum)
Flow Rate Cv 0.2 (Appx 1.5 GPM @ 60 PSI)
Power 6 Watts
Coil Connection Lead Wires
Response Time Fast Acting (Less than one second)
Duty Cycle 100% but not indefinitely
*Suitable Media Water – Air - *Etc
Weight 5 oz
Height 2.63"
Length 1.50" port to port
Width 1.24"

Product Overview

Model RSC-2 of our plastic valve line is a two-way, direct acting valve with a normally closed operating position. This means that there are two ports in which media flows and the valve will open when energized to allow media to pass through. Taking the energy away from the valve will close it and stop the flow. It works across various media such as water, air other low viscosity fluids.

*Consult a chemical compatibility expert for correct seal and valve body material choice.

*The Orifice size is 2.5mm and Cv value is 0.2. This valve is not recommended for gravity fed systems because of the small orifice size.

The port size is 1/4” inch female NPT threaded. The orifice size is 2.5mm and CV value is 0.2. It can withstand pressure up to 115 psi (8 bar) and temperatures as low as -5 C and as high as 90 C. The seal material is EPDM.

This specific plastic valve has a 12 Volt DC coil with a voltage range that is -+ 10. The coil head is fitted with a 10’’ wire lead that can easily be connected with your own choice of terminals. The top of the coil features a label that indicates the valve type and specifications. Its response time is very low; in fact, it acts in less than one second, making it a great choice for all types of applications.

Common uses include but not limited to;

  • Water Filters
  • Ice Makers
  • Drinking Fountains
  • Washing Machines
  • Dishwashers
  • Dental Tools
  • Fish Tanks
  • Beer Brewing
  • Hydroponics
  • Etc.

This model is mountable in any position and features a conveniently positioned arrow on the body to indicate the direction of flow. The valve body is threaded at the base and can quickly be mounted with 4mm machine screws.
