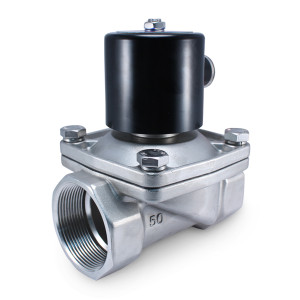

1" 110V AC Stainless Steel Solenoid Valve

Availability: In Stock

Technical Details

Position Normally Closed
Port Size 1" Female NPT
Voltage 110V AC
Body Material Stainless Steel
Components Stainless Steel
Seal Material Viton® Diaphragm
Orifice Size 25 mm
Temp Range 15 to 250° F / -10 to 120°C
Pressure Range Water: 0-145 PSI | Air 7-145 PSI
Flow Rate Cv 12 (Appx 92 GPM @ 60 PSI)
Power 28 Watts / 0.50 Amps
Coil Connection Lead Wires
Response Time Fast Acting (Less than one second)
Duty Cycle 100% but not indefinitely
*Suitable Media Water – Air - Fuel - *Etc
Weight 2 lbs 5 oz
Height 4.50"
Length 3.25" port to port
Width 2.60"

3D Models

Product Overview

The SZW-25-110VAC is a 2 way, normally closed stainless steel solenoid valve with 1” inch female NPT ports. This valve is controlled by a 110 VAC coil that has a voltage tolerance of +-10% making it suitable for most 120 Volt residential power systems. This valve can handle media temperatures ranging from 15°F up to 250°F. It is compatible with air, water, gas, weak acids and other low viscosity fluids (below 20cst).

The SZW-25-110VAC is our most popular 1” valve because it is compatible with most residential 120 Volt AC power systems. This valve has a voltage tolerance of +-10% so it can connect directly to a home’s power. The coil will require 28 watts or 0.50 amps to actuate. The valve is rated for 100% duty cycle however keeping it energized for long periods of time will reduce the life of the coil. It should not be installed continuously as a fail-safe in the event of a power outage. It can be connected with the 5.5” lead wires with terminal connectors or directly soldered.

The orifice size is 25mm and the flow rate can be calculated using a Cv of 12. The valve body has standard female NPT connection ports. This solid Stainless Steel valve weights approximately 2lbs 5ozs, dimensions are 4.5” tall, 2.60 width and 3.25” port to port.

This valve is food and potable water grade making it a good choice for industrial or residential applications where a lead free valve is required. The valves materials comply with NSF61 however it does not have NSF certifications.

This valve is mountable in any position however coil up is preferred. An Wye Strainer or inline filter is always recommended to keep the valve free from debris that will prevent it from functioning as intended.

*Consult a chemical compatibility expert for correct seal and valve body material choice.

Warranty guarantees our valves to be free from defects in workmanship and materials under normal use for One year from the date of purchase.
