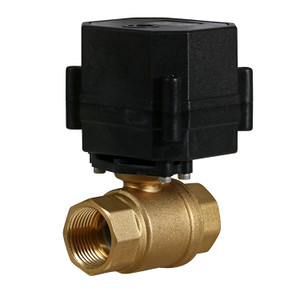

3/4" Stainless Electric Ball Valve - 2 Wire Auto Return

SKU: BVS5CE-XR22

Availability: In Stock

$82.95

Quick Links

Technical Details

SKU BVS5CE-XR22
Port Size 3/4" Female NPT
Wiring Type XR22 - 2 Wire Auto Return
Voltage Range Select Above (auto detects voltage)
Body Material 304 Stainless Steel
Components Stainless Steel
Seal Material EPDM
Ball Seat PTFE
Gears Metal
Bore Type Full
Flow Bi-Directional
Temp Range 15 to 250° F / -10 to 120°C
Pressure Range 0 - 185 PSI (No Minimum)
Max Torque 2 Nm
Power 500 mA while actuated
Coil Connection Lead Wires
Closing Time 5 Seconds
Duty Cycle 100%
*Suitable Media Water – Air - Fuel - *Etc
Enclosure Rating IP67 (NEMA 4 equivalent)
Weight 1 lb 0.8 oz
Height 4.20"
Length 2.92" port to port
Width 2.56"
Life Expectancy 80,000 to 100,000 Cycles

Product Overview

Choose an XR22 wiring option above:

  • 9 to 24V AC/DC (auto detects voltage)
  • 110 to 230V AC

This is a 3/4" Stainless Steel motorized ball valve with a stainless steel ball driven by metal gears, a PTFE ball seat and an EPDM seal. Benefits over a solenoid valve include it being bi-directional (capable of flowing in either direction), no water hammer (long close time of 4-5 seconds to fully open/close), no coil burn-out (negligible power required to hold position), and full flow without resistance. When power is given to the valve, the valve proceeds to fully open over 4-5 seconds all the while charging the internal capacitor. Once fully open, only a minimal amount of power is required to keep the capacitor charged. If power is lost or cut, then the power from the capacitor will fully close the valve. Please note, it takes a minimum of 60 seconds to charge the capacitor, so if power is cut before the capacitor is charged the valve may not fully close.


The XR22 actuator is rated IP67 and NEMA 4, therefore it is rated for outdoor use and resistant to splashes and sprays. Caution should still be used when installing outdoors, however, as extreme weather conditions can damage the valve. The actuator should preferably be installed upwards, especially in cases of high degrees of vibrations. There is also a position indicator on the top of the valve for convenience purposes.

This electric ball valves combination of a 304 stainless steel body with an EPDM seal make it an ideal choice for potable water applications or used in whole house shut off systems.



 *Consult a chemical compatibility expert for correct seal and valve body material choice.

Warranty

Electricsolenoidvalves.com guarantees our valves to be free from defects in workmanship and materials under normal use for One year from the date of purchase.

For complete terms of this warranty see our Warranty Terms & Conditions
