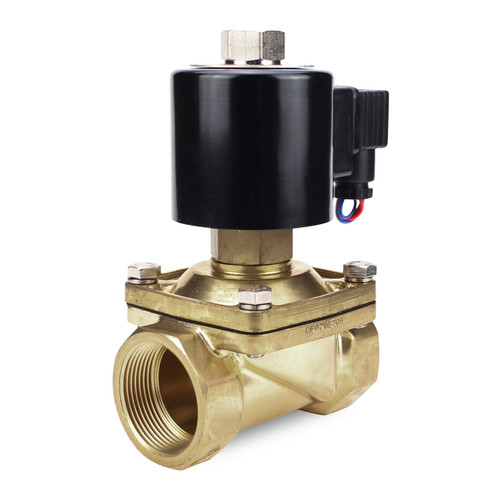

1-1/2" 110V AC Electric Solenoid Valve N/O

SKU: ZW-40K-110VAC

Availability: In Stock

$197.95

Quick Links

Technical Details

SKU ZW-40K-110VAC
Position Normally Open
Port Size 1-1/2" Female NPT
Voltage 110V AC
Body Material Brass
Components Stainless Steel
Seal Material Viton® Diaphragm
Orifice Size 40 mm
Temp Range 15 to 250° F / -10 to 120°C
Pressure Range 0 - 90 PSI (No Minimum Pressure)
Flow Rate Cv 29 (Appx 220 GPM @ 60 PSI)
Power 40 Watts / 0.50 Amps
Coil Connection DIN 43650A
Response Time Fast Acting (Less than one second)
Duty Cycle 100% but not indefinitely
*Suitable Media Water – Air - Fuel - *Etc
Weight 5 lbs 3 oz
Height 7.00"
Length 4.50" port to port
Width 3.25"

Product Overview

This 110V AC, normally open solenoid valve has 1-1/2” female NPT inlet and outlet ports along with a brass body and Viton seal. This allows the valve to be used with water, air, gas, weak acids, weak alkali, and Freon. For fluids, the viscosity should be below 20cst.

The orifice size for this valve is 40 mm. The valve has a Cv value of 29, which can be used to calculate the flow rate of the valve. Since the valve is normally open, it is in its ‘open’ configuration without power, and in its ‘closed’ configuration while being powered. The valve is unidirectional, meaning media should only flow in the direction of the valve arrow, not both ways.

This valve is perfect for a gravity feed situation since it does not require a minimum pressure to operate. The maximum operating pressure for this valve is 90 psi and it has a temperature range between 15 and 250 degrees Fahrenheit. A pre-filter is recommended in order to avoid any build up in the valve orifice.

The electrical enclosure for the valve has an IP54 rating, allowing for limited protection against dust and splash water from any direction. Since the coil has no polarity, the lead wires are interchangeable. This valve requires 40W of power to function. The response time is also extremely fast, being less than one second.

 *Consult a chemical compatibility expert for correct seal and valve body material choice.

Warranty

Electricsolenoidvalves.com guarantees our valves to be free from defects in workmanship and materials under normal use for One year from the date of purchase.

For complete terms of this warranty see our Warranty Terms & Conditions
